Product Description

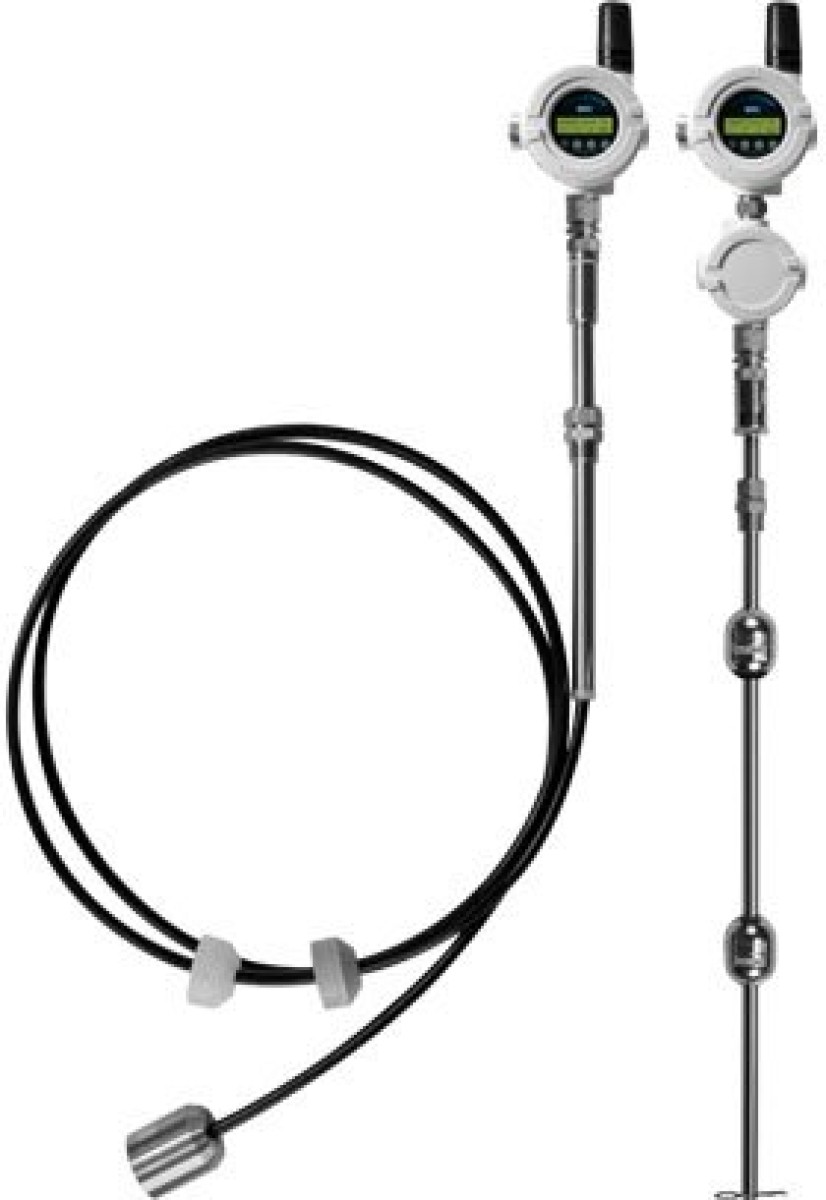

WIRELESS TRANSMITTERS & RESISTIVE TANK LEVEL SENSORS

Battery-Powered, Self-Contained Automatic Tank Gauging (ATG) Solutions

WT-LL3 | WT-LL3-T | WT-LL3-D | WT-LL3-DT

HIGHLIGHTS

• Monitor product, interface & temperature using a single Resistive Tank Level Sensor
• Advanced local LCD display interface
• Up to a 10-year battery life
• ± 1/8” accuracy on 1/4“ resolution sensor* (T option)*API 18.2-compliant
• ± 1/4” accuracy on 1/2“ resolution sensor
• Flex (PTFE) or rigid (316 SS) sensor option
• Multiple liquid compatibility
• Sensor requires a one-time only calibration
• Installs in minutes: Quick Connect eliminates sensor wiring error and hassle
• Highly resistant to H2S damage, scaling, and paraffin buildup (Limited lifetime warranty, please contact your OleumTech representativefor details)
• Supports Over-the-Air (OTA) functionality for updating the device configuration/calibration (900 MHz only)
• Self-contained, rugged design, IP66
• Sensor supports a wide temperature range
• -40 ˚C to 120 ˚C (-40 ˚F to 248 ˚F)
• 900/915 MHz range: Up to 1.4 Miles / 2.3 km with Clear Line of Sight
• 2.4 GHz range: Up to 1.9 Miles / 3.1 km with Clear Line of Sight
• 868 MHz range: Up to 1.5 Miles / 2.4 km with Clear Line of Sight
• Secure AES encryption
• Class I, Division 1 (Zone 0), Intrinsically Safe
• US Patent #6,967,589 & #8,763,455 B1
