Product Description

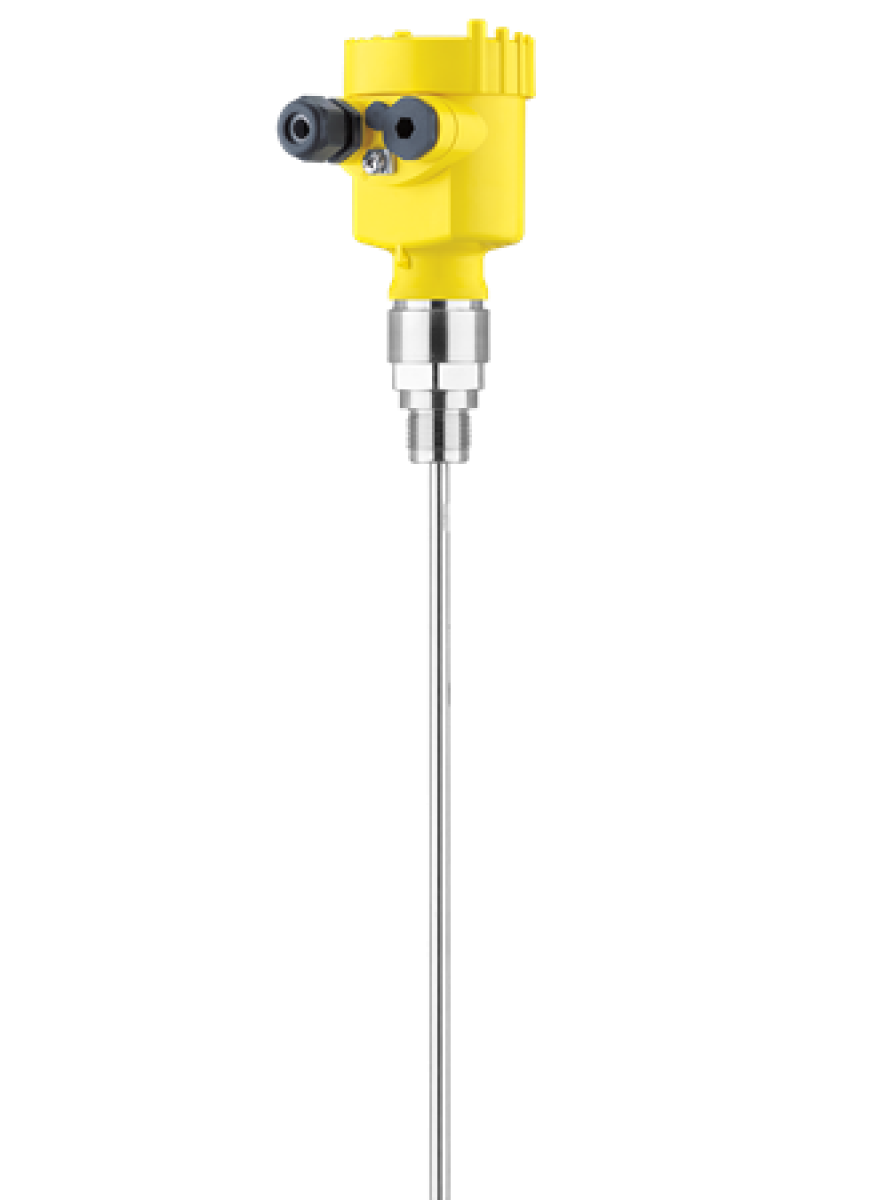

VEGAFLEX 81

TDR sensor for continuous level and interface measurement of liquids

Universal TDR sensor for liquids of all kinds

Application area

Cable, rod or coaxial sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings – also in standpipes or bypass pipes.

The VEGAFLEX 81 level sensor measures maintenance-free all kind of liquids. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise

and reliable measured values. The VEGAFLEX 81 is the economical solution for various level and interface measurements.

Your benefit

The guided adjustment enables a simple, time-saving and reliable setup

Shortenable probes offer a simple standardisation and highest flexibility in the planning

Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability

The ace for level measurement and interface measurement in all liquids

The VEGAFLEX 81 guided radar sensor is exceptional when it comes to measuring the level or interface of liquids. Guided radar is extremely versatile and can be found in almost every industrial sector.

Whether bitumen or liquefied gas, in storage containers or standpipes, in a metering tank or in tank farms – VEGAFLEX 81 measures the level or interface (separation layers) of liquids with great reliability and accuracy.

Guided radar delivers reliable measurements data for control or safety systems for:

-Level measurement in ammonia storage tanks

-Level measurement in standpipes

-Interface measurement in storage tanks, bypass tubes, standpipes

Specifications:

Measuring range - Distance
75 m [Meter - Foot]

Process temperature
-60 ... 200 °C [°C - °F]

Process pressure
-1 ... 40 bar [Bar - kPa - psi]

Accuracy
± 2 mm

Ambient temperature
-40 ... 80 °C
