Product Description

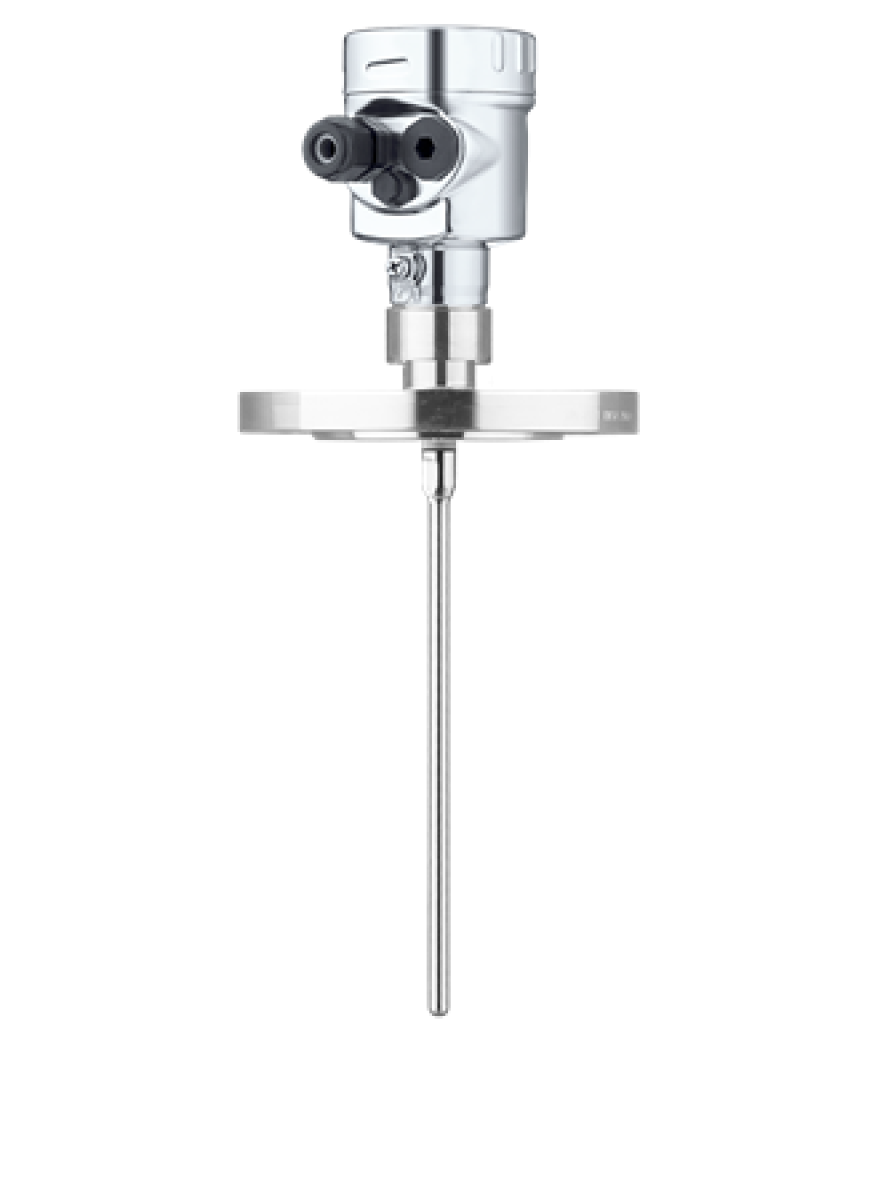

VEGAFLEX 83

TDR sensor for continuous level and interface measurement of liquids

For aggressive media or extremely high hygienic requirements

Application area

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.

The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation

and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

The gap-free hygienic design ensures simple and reliable cleanability

The maintenance-free operation increases the plant efficiency

The guided adjustment enables a simple, time-saving and reliable setup

Guided radar level sensor for sterile containers and hygienic applications

The VEGAFLEX 83 guided radar level sensor is ideal for level and interface (separation layer) measurement in tanks or sterile containers in the food and pharmaceutical industry. With its bare

stainless steel probe, it meets the highest standards of hygiene and is the perfect solution for all hygienically sensitive media. The high-quality stainless steel probe easily withstands aggressive

or corrosive liquids. Measurement is completely independent of product properties such as density or temperature, as well as foam formation or build-up.

The VEGAFLEX 83 guided radar level sensor is a special probe for hygienically sensitive liquids, e.g. for:

-Level measurement in a ketchup mixer

-Level measurement in milk tanks

-Level measurement in acid containers

Specifications:

Measuring range - Distance
32 m [Meter - Foot]

Process temperature
-40 ... 150 °C [°C - °F]

Process pressure
-1 ... 16 bar [Bar - kPa - psi]

Accuracy
± 2 mm

Ambient temperature
-40 ... 80 °C
