Product Description

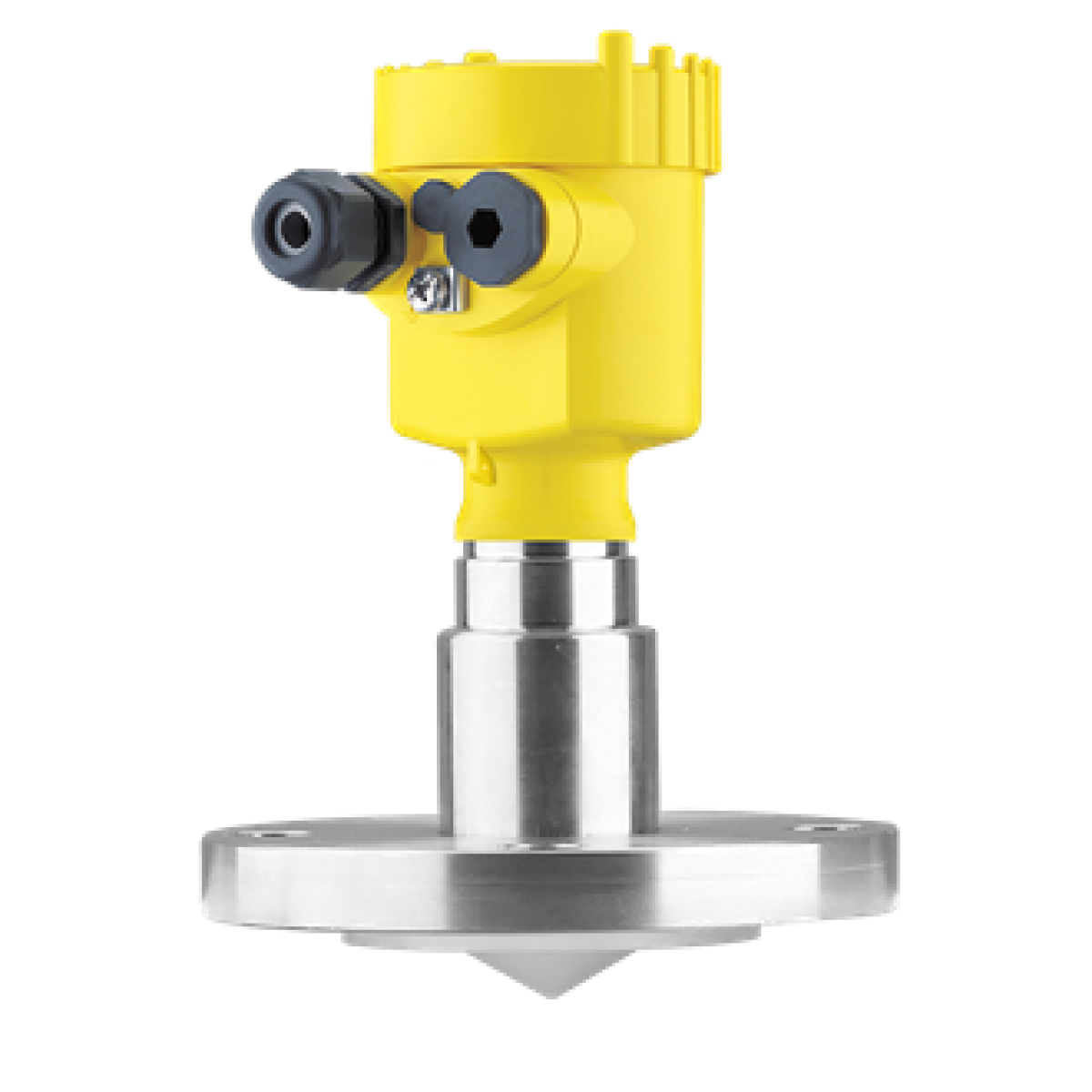

VEGAPULS 63

Radar sensor for continuous level measurement of liquids

For aggressive liquids or under hygienic requirements

Application area

The front-flush mounting of the encapsulated antenna system ensures optimum cleaning even with strict hygienic requirements.

The VEGAPULS 63 is a radar sensor for continuous level measurement of aggressive liquids or with hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors. The encapsulated antenna system of VEGAPULS 63 protects the VEGAPULS 63 against pollution and ensures a maintenance-free permanent operation. The front-flush mounting ensures an optimum cleanability even with high hygienic requirements.

Your benefit

• Exact measuring results independent of process conditions
• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle

Technical specifications

Technical specifications
Measuring range - Distance
35 m [Meter - Foot]

Process temperature
-196 ... 200 °C [°C - °F]

Process pressure
-1 ... 16 bar [Bar - kPa - psi]

Accuracy
± 2 mm

Frequency
26 GHz

Beam angle
≥ 10°

Version
hygienically encapsulated horn antenna

Materials, wetted parts
PFA
PTFE
316L
TFM-PCTFE
TFM-PTFE

Flange connection
≥ DN50, ≥ 2"

Hygenic fittings
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
hygienic fitting with tension flange DN32
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
Hygienice flange connection ≥ DN50 DIN11864-2
Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A
DRD connection ø 65 mm
SMS 1145 DN51

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Modbus
4 … 20 mA/HART - four-wire

Ambient temperature
-40 ... 80 °C
