Product Description

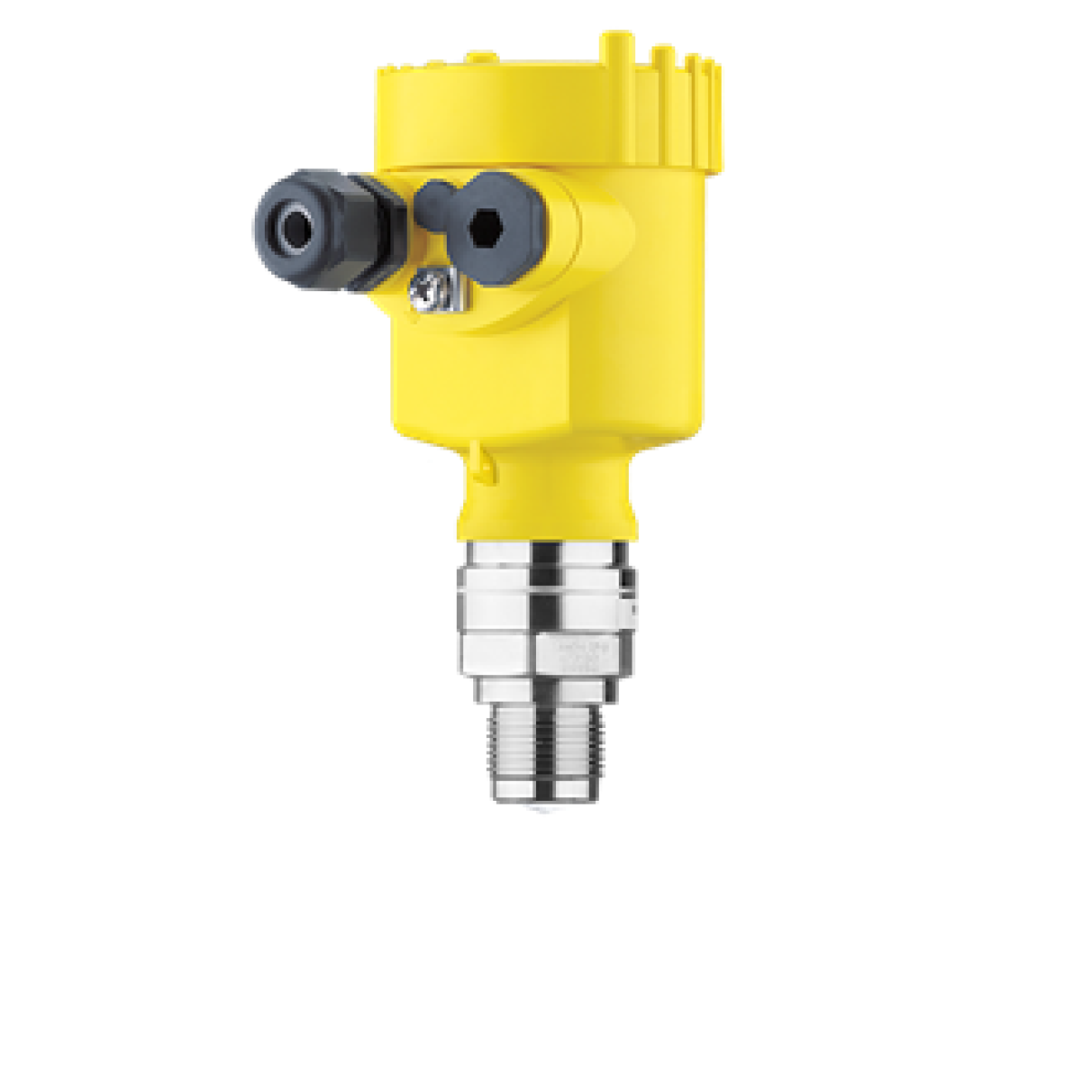

VEGAPULS 6X

Radar sensor for continuous level measurement of liquids and bulk solids

All-round radar measuring device - VEGAPULS 6X combines the best of the previous VEGAPULS 60 series.

Application area

VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.

Your benefit

• Exact measuring results independent of process conditions
• Maintenance-free operation through non-contact measuring principle
• Application-oriented configuration enables a simple device selection

Technical specifications
Measuring range - Distance
120 m [Meter - Foot]

Process temperature
-196 ... 450 °C [°C - °F]

Process pressure
-1 ... 160 bar [Bar - kPa - psi]

Accuracy
± 1 mm

Frequency
6 GHz
26 GHz
80 GHz

Beam angle
≥ 3°

Materials, wetted parts
PTFE
PVDF
316L
PP
PEEK

Threaded connection
≥ G¾, ≥ ¾ NPT

Flange connection
≥ DN20, ≥ ¾"

Hygenic fittings
Clamp ≥ 1½" - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
hygienic fitting with tension flange DN32
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
Hygienice flange connection ≥ DN50 DIN11864-2
Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A
DRD connection ø 65 mm
SMS 1145 DN51

Seal material
EPDM
FKM
FFKM
graphit and ceramic
PTFE

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
IP69K

Ambient temperature
-40 ... 80 °C
