Product Description

OLEUMTECH

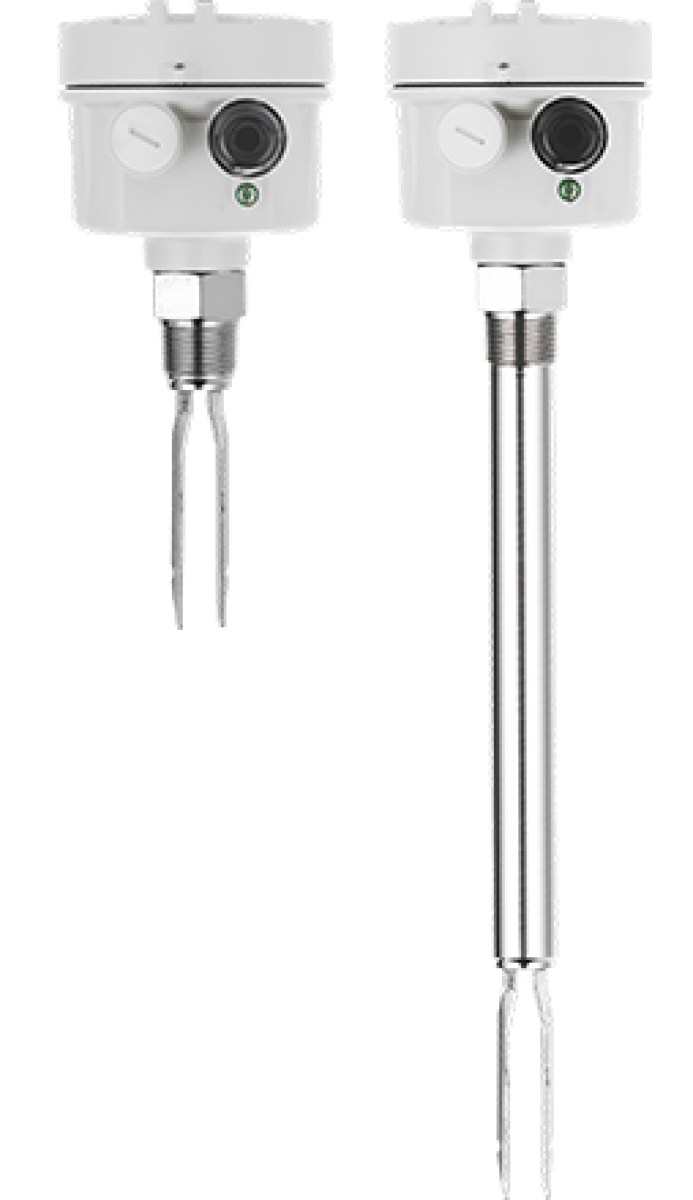

TUNING FORK LEVEL SWITCHES

HIGH or LOW POINT LEVEL DETECTION SOLUTIONS

HTF1740 | HTF1741

HIGHLIGHTS

• Ideal for monitoring high or low level conditions ofliquids, fine grained solids, and powders
• Unaffected by turbulence, flow,foam/bubbles, vibration, liquid properties,product variations, coating products,and solids content
• Fork material: 316 or 316L stainless steel
• Process temperature: -40 to 130 °C (-40 to 266 °F)
• Max pressure: 2900 PSI (200 BAR)
• 5” to 118” length option in 1” increments
• Signal Output: Relay SPDT/Single Pole Double Throw (NO and NC) orSSR MOSFET (PNP/NPN) option
• Fitting options: NPT, BSP, 150 and 300 lbs
• Selectable alarm high or low option
• Sensitivity adjustment option
• Support for wide power supply range
• No calibration required
• NEMA 4X, IP66, Explosion-Proof
• Magnetic Switch Kit available to verify operation, 1/2″ NPT Direct-Mount
