Product Description

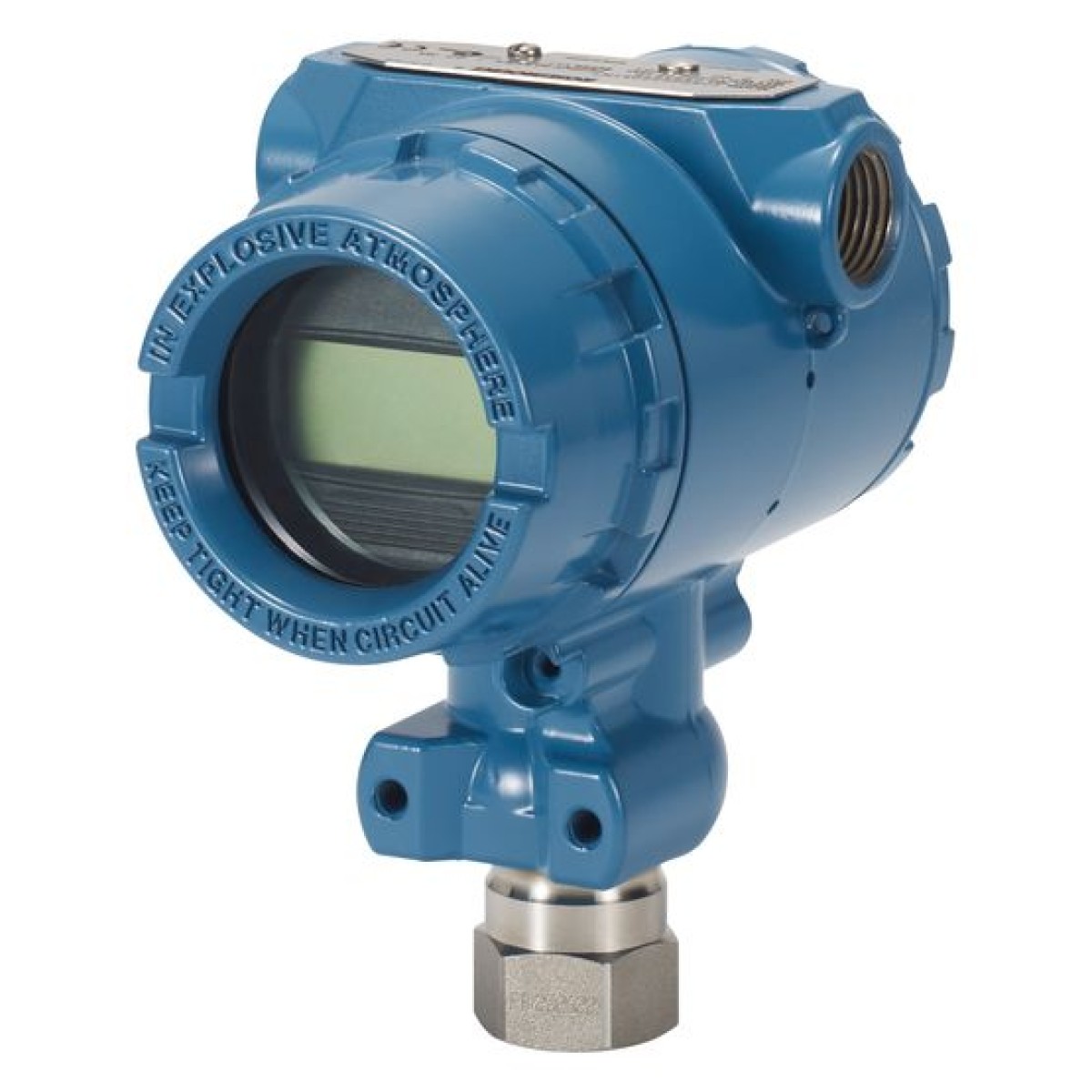

Rosemount™ 2088 Gauge and Absolute Pressure Transmitter

With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can keep on schedule with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons, so you can commission the device on the spot without complicated tools. This pressure transmitter is also available with manifolds and remote seals.

Specifications

Warranty

Up to 5-year limited warranty

Rangedown

Up to 50:1

Communication Protocol

4-20 mA HART®, 1-5 V Low Power HART®

Measurement Range

Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute

Process Wetted Material

316L SST, Alloy C-276

Diagnostics

Basic Diagnostics

Certifications/Approvals

NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

• Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
• Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
• Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
• Lightweight, compact design allows for easy installation
