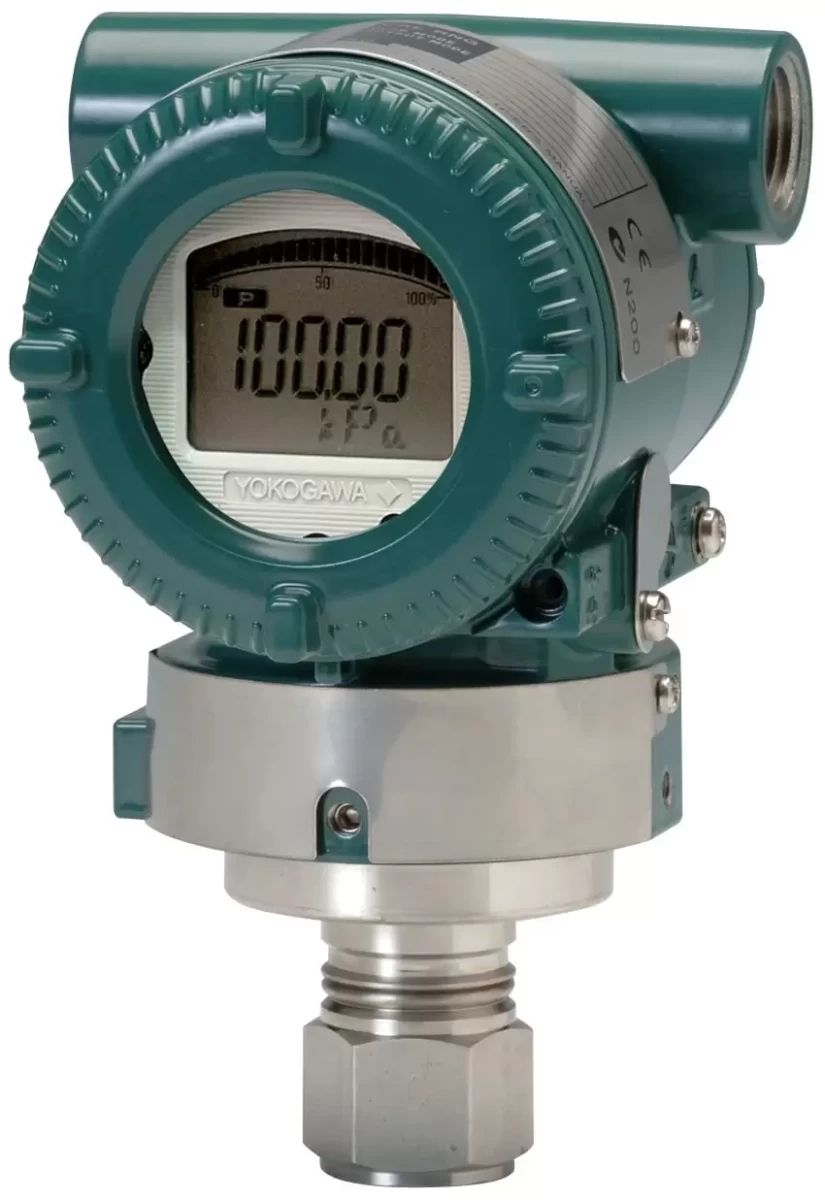

Yokogawa EJX510A In-Line Mount Absolute Pressure Transmitter
Product Description
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it a thoroughbred of the DPharp family of pressure transmitters. The EJX510A is the In-Line mount Absolute Pressure Transmitter in the series. EJX510A features include: Explore how the EJX510A can help you Boost your bottom line. At it's heart, Yokogawa's High-static Differential Pressure Transmitter with DPharp sensor offers the performance and device intelligence needed to get greater insight into your process. Poor Performance = Lost Money Installed performance 2x better using all digital DPharp pressure sensor. Yokogawa’s digital sensor provides superior performance and stability compared to analog sensors. Easy to read indicator provides all the information you need. Good Diagnostics = Less Surprises Reduce unscheduled maintenance by 60% Over 40 diagnostics to ensure everything is OK. Active Sensor Technology monitors the DPharp sensor while the Patented Back-check Technology is reverse checking all calculations in real-time. Reduce unscheduled maintenance by 60%. Predictive impulse line blocking and stream tracing diagnostics lets you see problems before they happen. Yokogawa's DPharp active sensor, patented back check diagnostics, and rugged construction allow users to run their plants safer and with less downtime. Ruggedness = Reliability Reduce failures in the field by 200%. Yokogawa transmitters are designed to out live your planet. Less Downtime = Making Product Over 6 million DPharp transmitters are installed worldwide. Reliability verified independently by third party industry experts. Inherently Safe = Reliability Save up to 10% on CAPEX spending. All Yokogawa pressure transmitters are certified to meet IEC61508 for single use in SIL 2 applications or dual use in SIL 3 applications as a standard. No special option needed! To Yokogawa, safety should never be an option. Unlike other sensor technologies, the active DPharp sensor constantly produces a signal even if there is no change in the process. This signal is continually monitored by the CPU. All calculations are checked by reverse calculation in real-time ensuring the highest reliability. Efficient and effective maintenance through extended calibration intervals and simple trouble shooting. Reduce maintenance cost by 33%. Improved long-term stability extends calibration intervals. Spend your time where it is needed. Quicker = Less Downtime Save time, Save money FieldMate PC based communication platform allows management of your entire instrument inventory. FieldMate HHC allows you to take that information into the field. LPS can update 9 parameters in the field without the use of an HHC. Save time, Save money Local intuitive display with simple error messaging. NE107 compliant alarms in FieldMate make troubleshooting easy. Reduce stock. No need to stock separate inventory for safety and non-safety applications. With safety as a standard, Yokogawa transmitters can be used for either application. For Yokogawa, safety is never an option. No training required. Yokogawa transmitters support all industry standard field device protocols. Interoperability and interchangeability can be ensured. Use the same tools and work procedures as before. No Learning Curve = Smooth Change Over WPC106.a Graphics not to scale For Gauge or Absolute Pressure in-line transmitters, Yokogawa offers a complete line of Block & Bleed 2-Valve manifolds. Available as ASME B31.1 (Power) Compliant or TA-Luft Compliant.
Details
Plants run better with Yokogawa pressure transmitters.
Digital Performance
Digital Performance
More Information
Local IndicatorSelf Diagnostics
Standard Diagnostics
Advanced Diagnostics
Yokogawa pressure transmitters help plants run longer.
Rugged Construction
Rugged Construction
Proven Technology
Proven in Use
Reliability Guaranteed
Inherently Safe Design
Inherently Safe
Active Sensor Technology
Patented Self-check System
Routine maintenance is easier with Yokogawa pressure transmitters.
Quicker Maintenance
Extended Calibration Intervals
Multiple Communication Options
Simple Troubleshooting
Less Inventory
Safety as Standard
No Learning Curve
Standard Protocols
EJX510A Overview
Measurement Types Primary Variable Absolute Pressure Reference Accuracy Primary Variable ±0.04% of Span Stability (All Normal Operating Conditions) Primary Variable ±0.2% of URL per 10 years Response Time Primary Variable 90ms Rangeability Primary Variable A Capsule: 25:1
B, C, or D Capsule: 50:1 Burst Pressure (Absolute) A, B, or C Capsule 4,350 psi (30 MPa) D Capsule 19,100 psi (132 MPa) Specification Conformance EJX-A Series ±3σ EJX510A Capsule Ranges
Manifolds
